Acoustic vertical blinds · Langenthal, Switzerland
ACOUSTIC STRIPES
by Création Baumann
- Closed, absorber class A
- αw 0.90
- Turned open to 90°
- αw 0.35
- Standard colours
- 10
- Stripe width, approx. 7 mm thick
- 127 mm

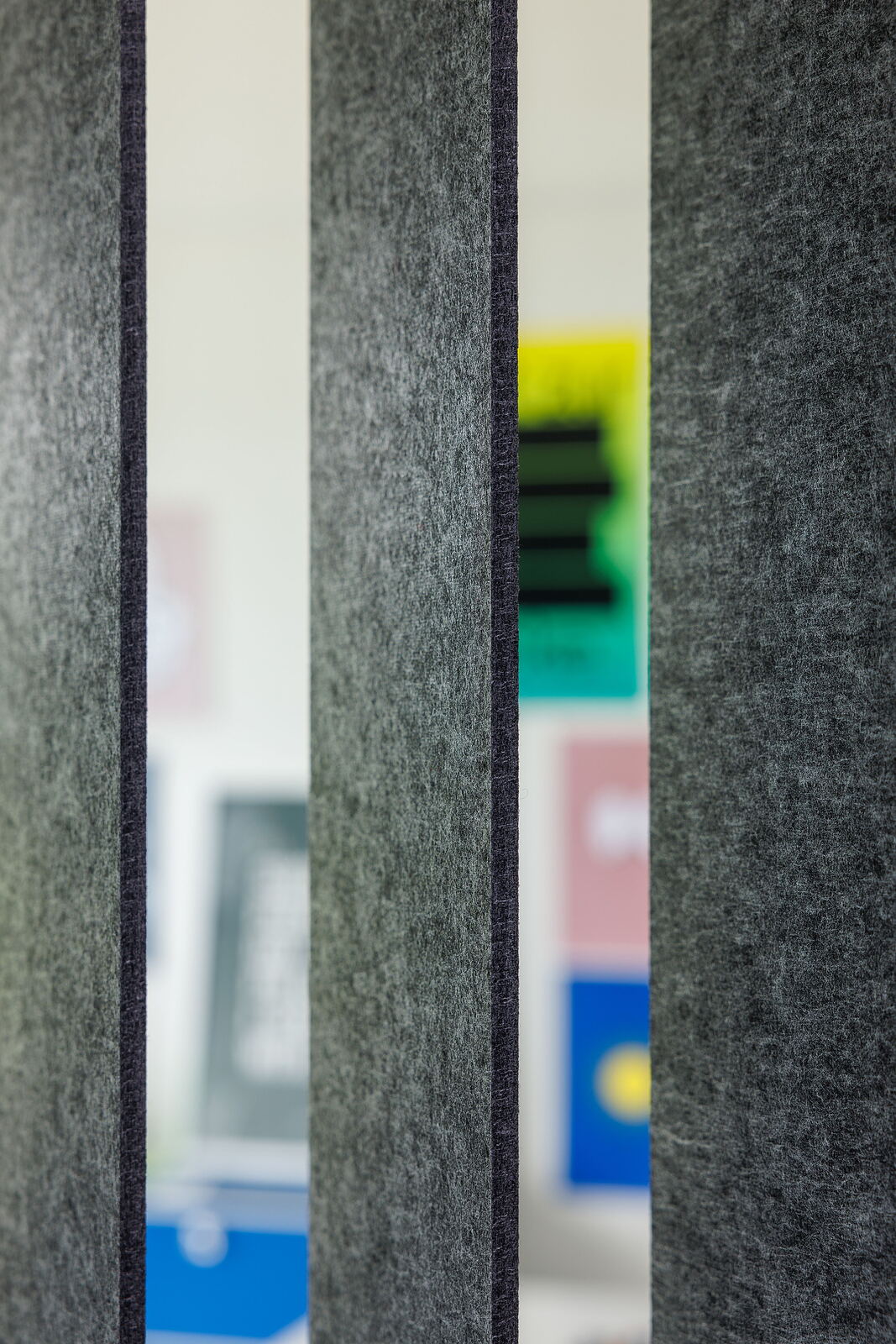

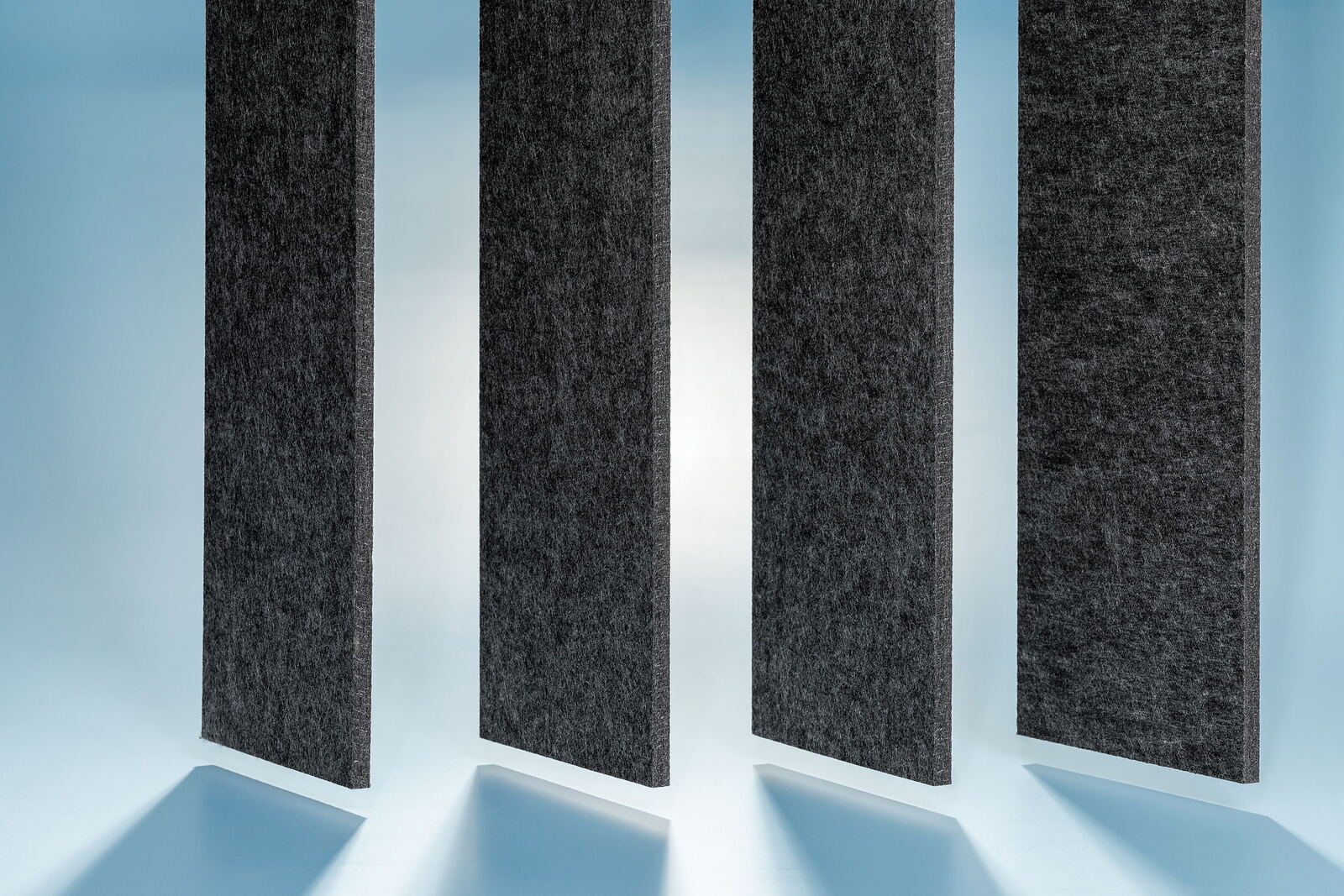

The classic vertical blind, reinvented in sound-absorbing fibre: stripes that zone a room, screen a window and change its acoustics as they turn.

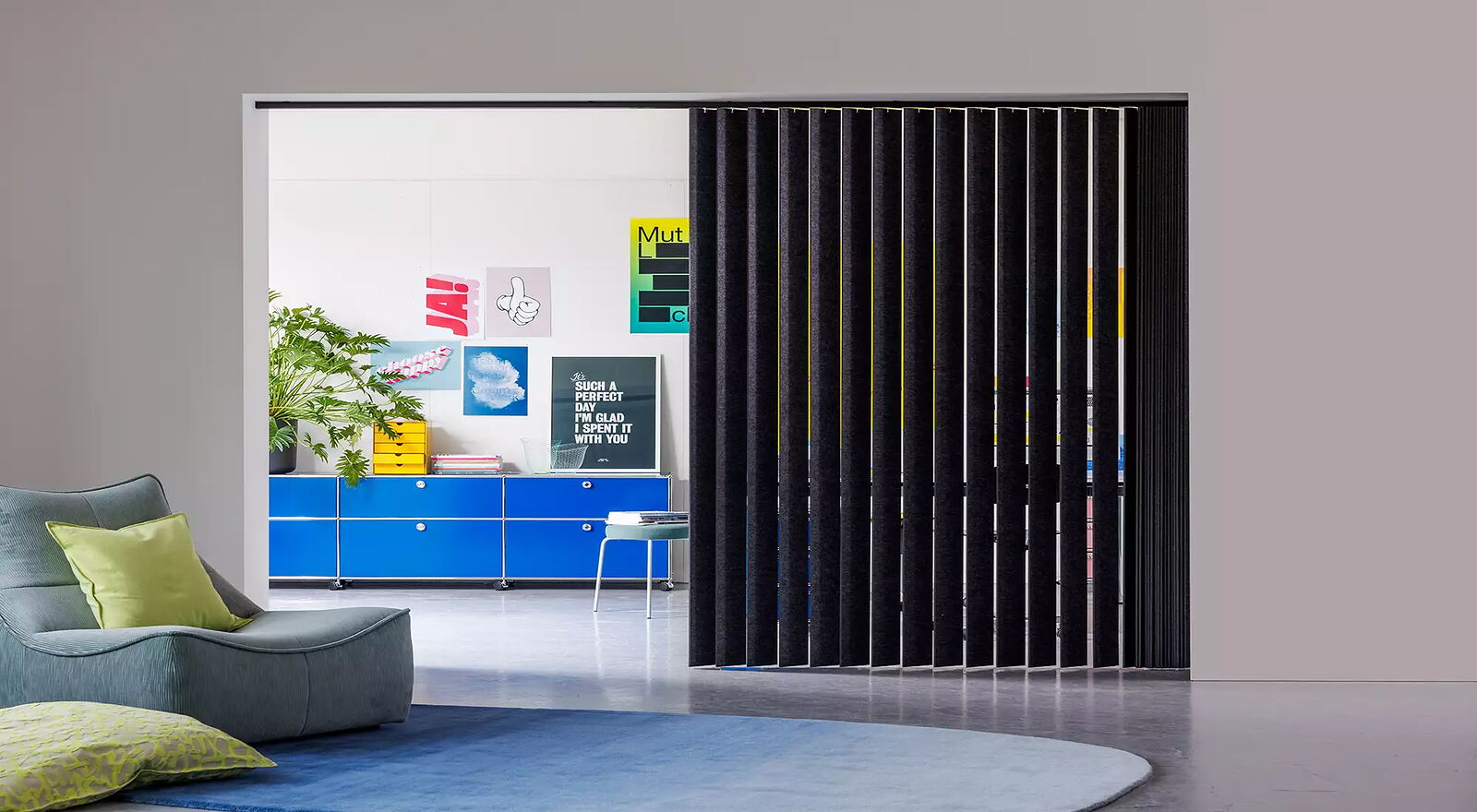

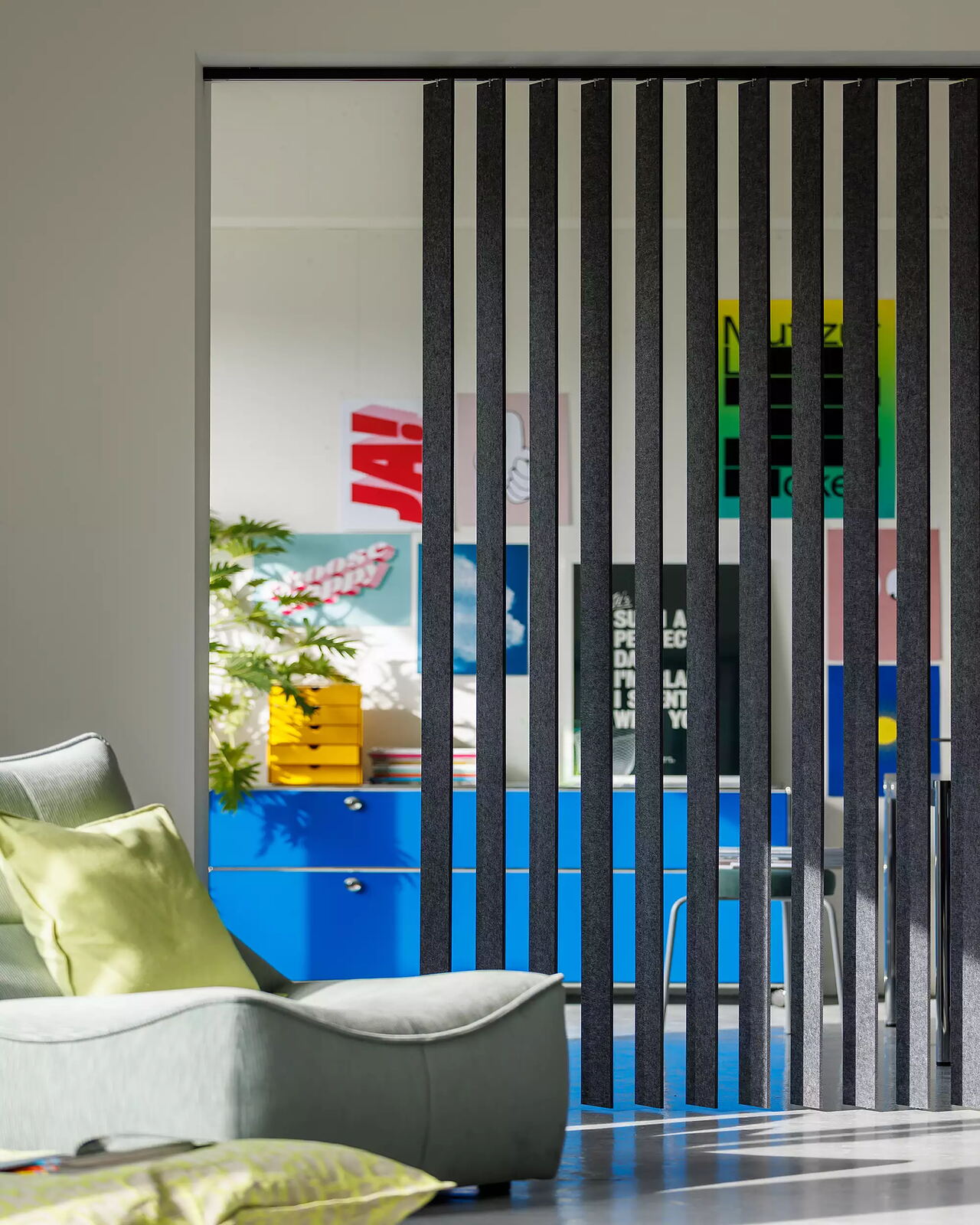

The in-house development ACOUSTIC STRIPES by Création Baumann combines flexible room partitioning, control of room acoustics, and privacy and glare protection in a new interpretation of the classic vertical blind – in the room or at the window. Opened or closed, quickly and continuously, the stripes divide a space for the moment: for focused work or creative exchange.
The OEKO-TEX STANDARD 100 certified stripes are produced in Germany, from the fibre to the cut stripe, and made to measure in Switzerland. Plugged in, not glued, the components can be separated by material and recycled.

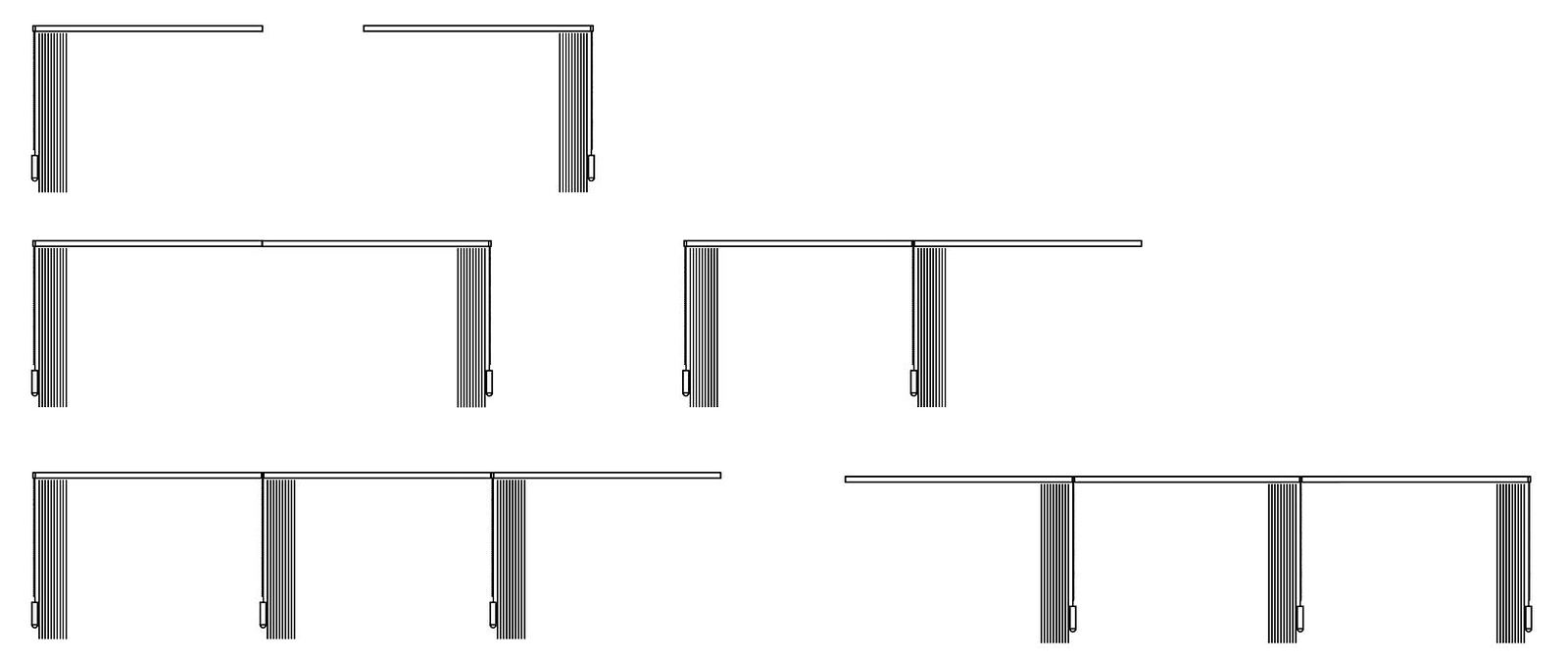

Height and width are made to measure, and for large widths several systems can be linked. Ten standard colours range from activating tones to calming ones, for monochrome or segmented schemes; the track comes in white, aluminium or black.
Specifications
- Material
- 100 % polyester, flame retardant; OEKO-TEX STANDARD 100
- Stripe
- 127 mm wide, approx. 7 mm thick, 222 g per running metre
- Sound absorption
- αw up to 0.90, absorber class A, depending on setting
- Fire
- Flame retardant, EN 13501-1 / ASTM E84 Class A
- Light fastness
- 5–6
- Size
- Made to measure; several systems can be linked
- Track
- White, aluminium or black
- Made in
- Germany, made to measure in Switzerland
About Création Baumann
Création Baumann is a family-run textile company based in Langenthal, Switzerland, now in its fourth generation; its passion for textiles began in 1886. With a design studio and production of its own, the company shapes the entire process itself, from the idea to its realisation, and is represented in more than 40 countries through subsidiaries and partners.
One blind, three settings
Practical sound absorption αp per octave band, measured to DIN EN ISO 354 with the stripes 150 mm in front of the wall, as at a window.
Closed or open

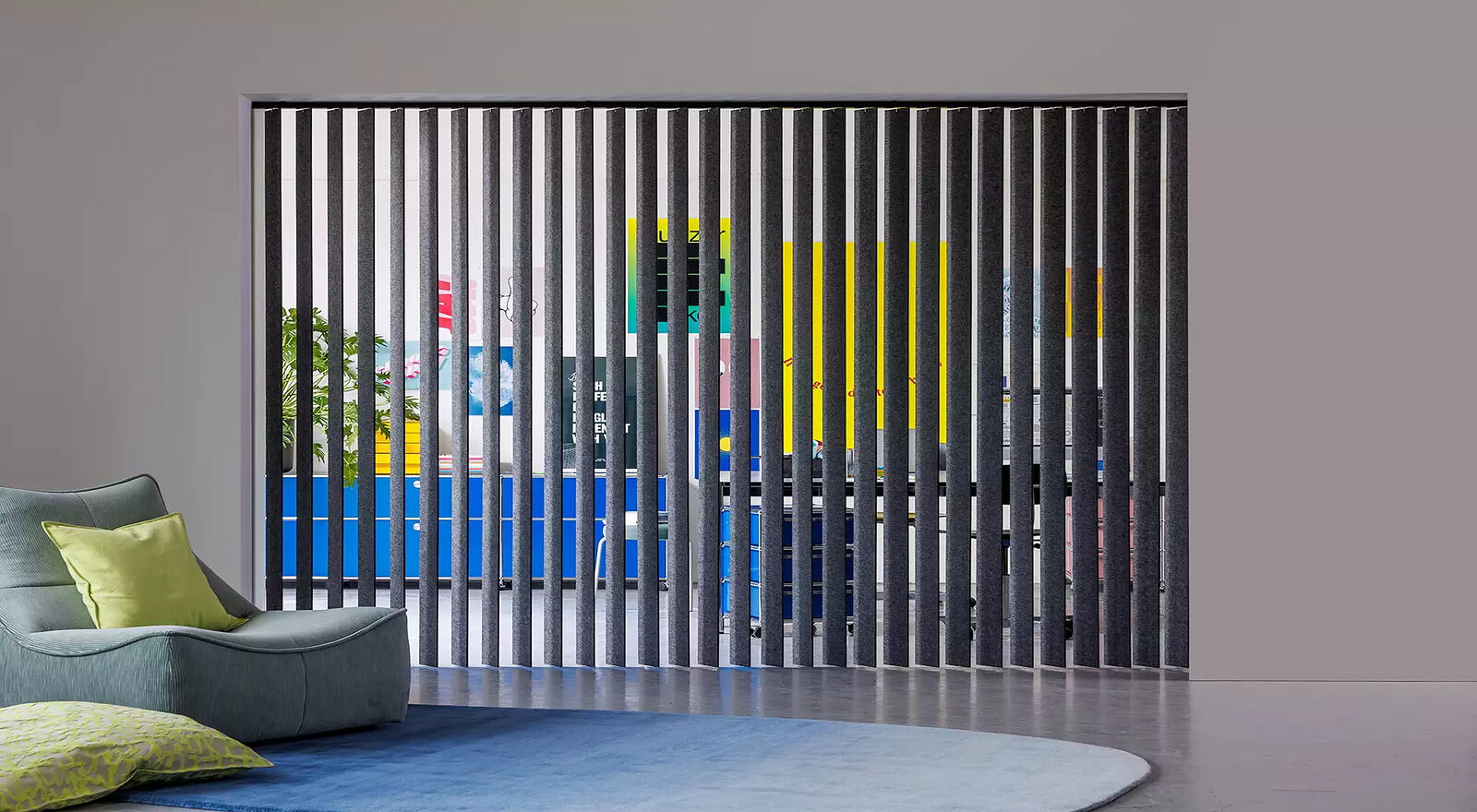

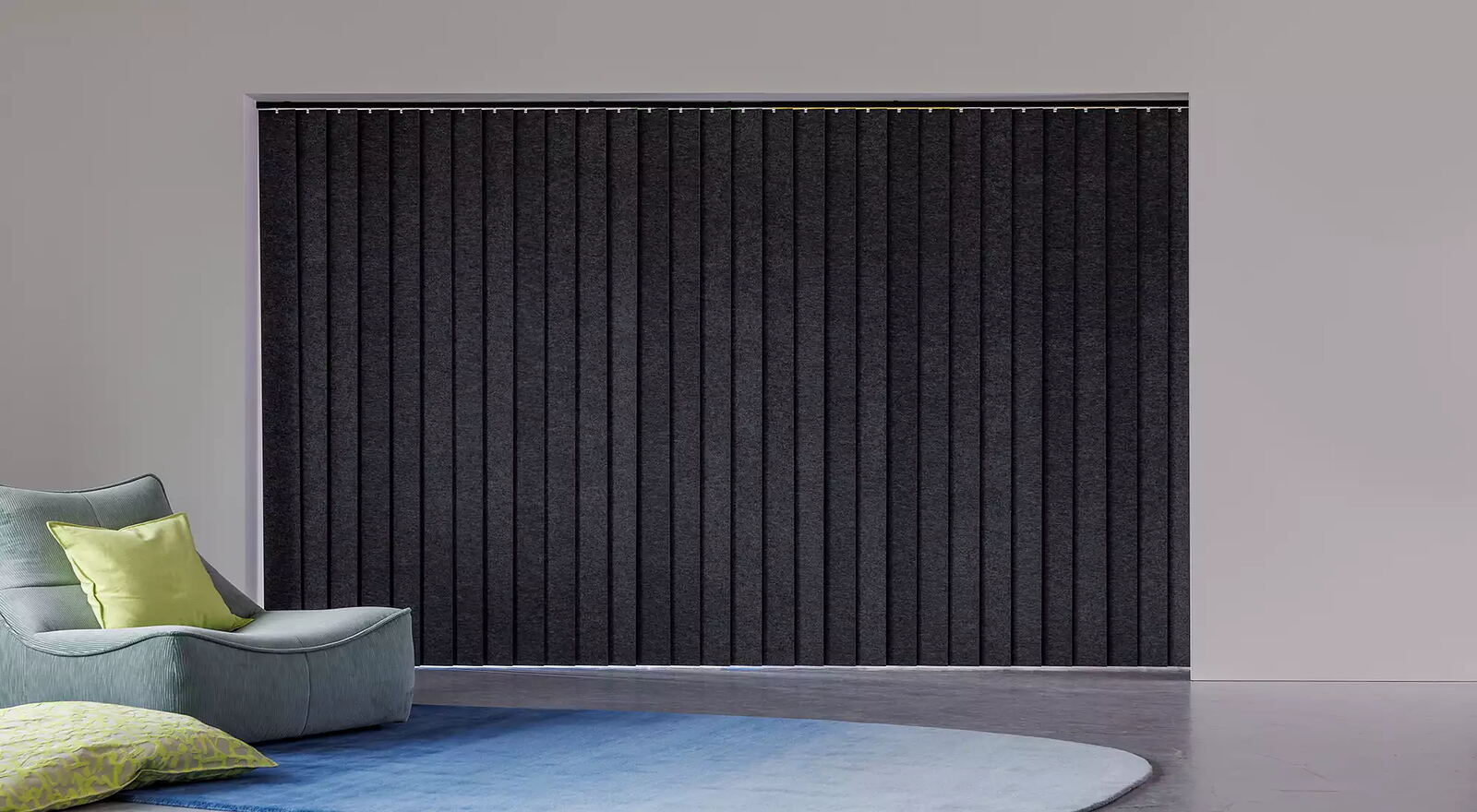

The same wall of stripes, turned. Closed, they take up most of the sound that reaches them; opened to 90°, the room behind them returns – and so does some of the echo.
Closed, 0°: αw 0.90, absorber class A.
Sound absorption αp
Frequency in Hz
- Closed, 0° αw 0.90, class A
- Half open, 45° αw 0.45, class D
- Open, 90° αw 0.35, class D
Show the values as a table
| Setting | 125 | 250 | 500 | 1000 | 2000 | 4000 | αw |
|---|---|---|---|---|---|---|---|
| Closed, 0° | 0.15 | 0.60 | 0.90 | 0.90 | 0.95 | 1.00 | 0.90 |
| Half open, 45° | 0.05 | 0.20 | 0.45 | 0.65 | 0.90 | 1.00 | 0.45 |
| Open, 90° | 0.05 | 0.20 | 0.25 | 0.35 | 0.70 | 1.00 | 0.35 |
Frequency in Hz
Hanging freely in the room, where sound passes around them, the same stripes reach αw 0.50 closed, 0.30 half open and 0.25 open.
Test report B102794/50, Müller-BBM Building Solutions, 2023

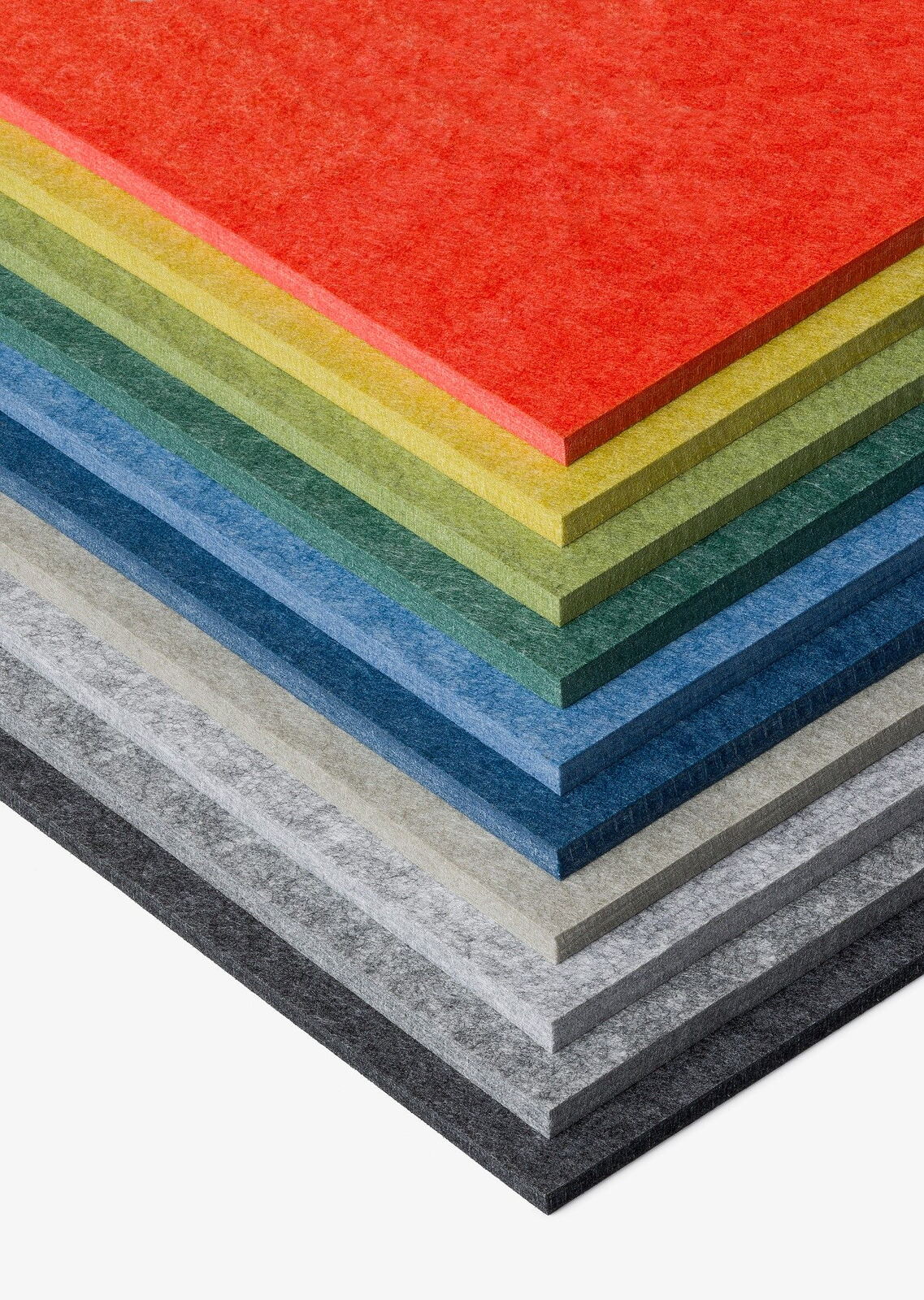

Ten standard colours
From activating tones such as a bright red to calming shades of blue and green, in a mottled, architectural non-woven.
-

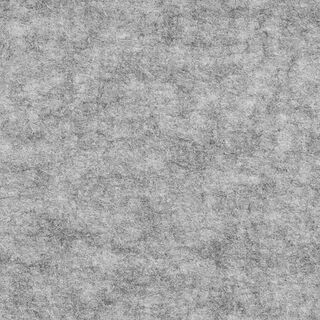

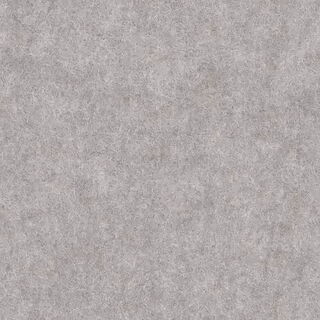

Col. 0001
-
Col. 0002
-
Col. 0003
-

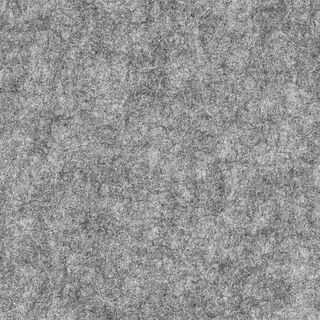

Col. 0004
-
Col. 0005
-
Col. 0006
-
Col. 0007
-
Col. 0008
-

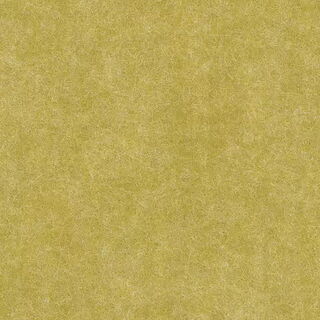

Col. 0009
-

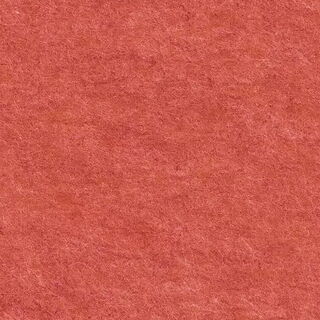

Col. 0010
Colours shown are not binding.
